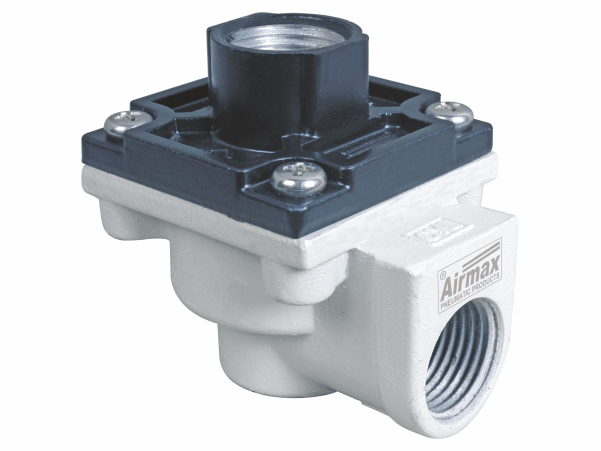

Quick Exhaust Valve

Product Details

Model	AQEV
Size	1/4", 3/8", 1/2", 3/4",1"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	10 Kg/Cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air

---

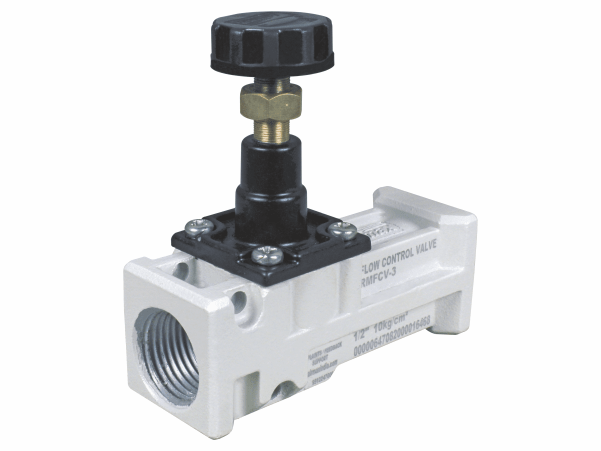

Flow Control Valve

Product Details

Model	RMFCV
Size	1/4", 3/8", 1/2", 3/4", 1"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	10 Kg/Cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air

---

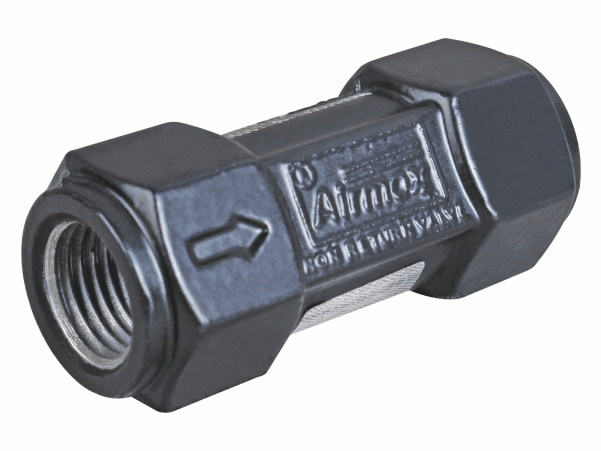

Non Return Valve

Product Details

Model	ANRV
Size	1/8", 1/4", 3/8", 1/2"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	10 Kg/Cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air

---

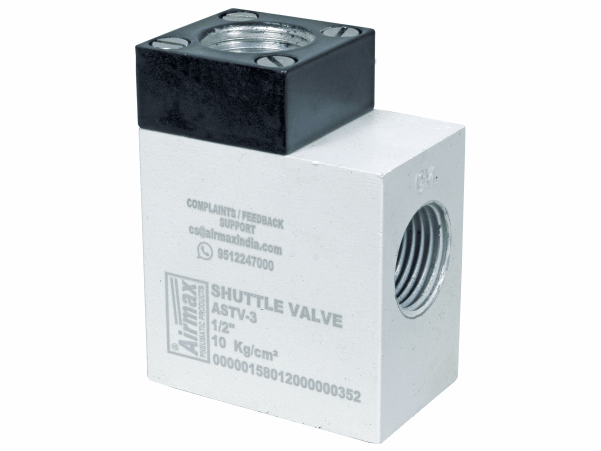

Shuttle Valve

Product Details

Model	ASTV
Size	1/4", 1/2"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	10 Kg/Cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air

---

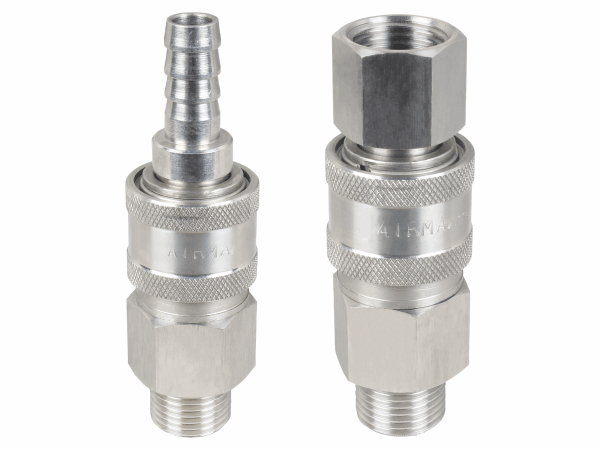

Quick Release Coupling Single Check

Product Details

Model	QR-S
Size	1/8" to 2"
Body	Steel Chrom Plated / Brass / S.S. 304 / S.S. 316
Valve Type	Male to Hose, Male Female
Seals	Nitrile
Pressure	35 Kg/cm²
Temperature	85˚C
Leakage	Bubble Tight
Media	Compressed Air, Water, Oil& Gas
Note	Up to 250°C Available on Request

---

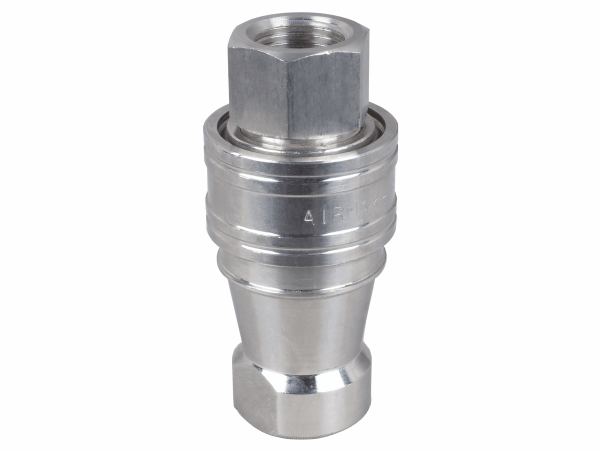

Quick Release Coupling Double Check

Product Details

Model	QR-D
Size	1/8" to 2"
Body	Steel Chrom Plated / Brass / S.S. 304 / S.S. 316
Seals	Nitrile
Pressure	140 to 280 Kg/cm²
Temperature	85˚C
Leakage	Bubble Tight
Media	Compressed Air, Water, Oil & Gas
Note	High Temperature up to 250°C available on Request with 'Viton' Seals

---

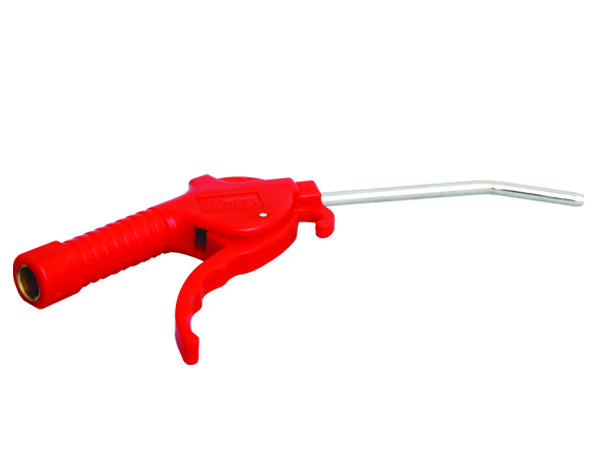

Air Blow Gun

Product Details

Model	AR - TS
Size	1/4"
Body	Plastic Body
Pressure	12 Kg/cm²
Media	Compressed Air

---

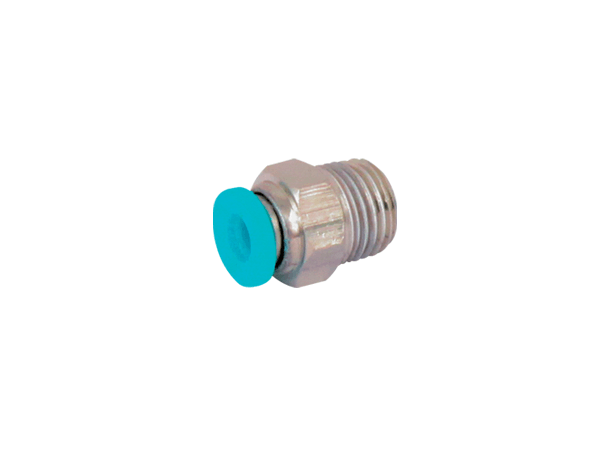

Male Connector (Apc)

Product Details

Model	APC
Body	Brass Plated
Pressure	10 Kg/Cm²
Temperature	50°C
Sleev	POM
Pipe Size	4, 6, 8, 10, 12, 14, 16
Conn. Size	M5, M6, 1/8", 1/4", 3/8", 1/2"

---

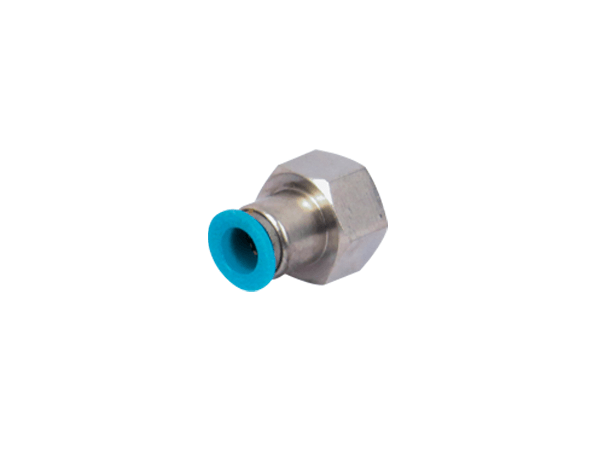

Female Connector (Apcf)

Product Details

Model	APCF
Body	Brass Plated
Pressure	10 Kg/Cm²
Temperature	50°C
Sleev	POM
Pipe Size	4, 6, 8, 10, 12, 14, 16
Conn. Size	M5, M6, 1/8", 1/4", 3/8", 1/2"

---

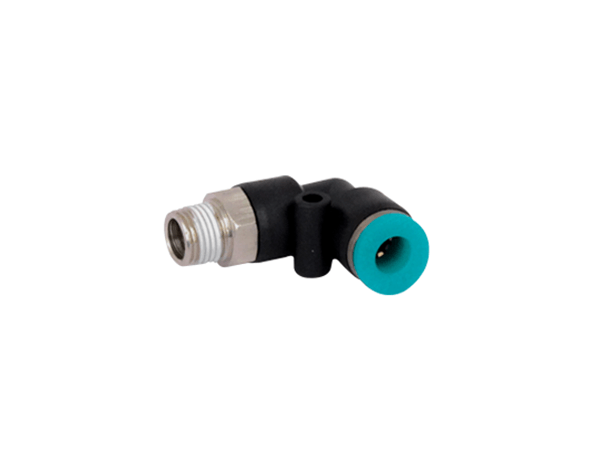

Male Elbow (Apl)

Product Details

Model	APL
Body	Brass Plated
Pressure	10 Kg/Cm²
Temperature	50°C
Sleev	POM
Pipe Size	4, 6, 8, 10, 12, 14, 16
Conn. Size	M5, M6, 1/8", 1/4", 3/8", 1/2"

---

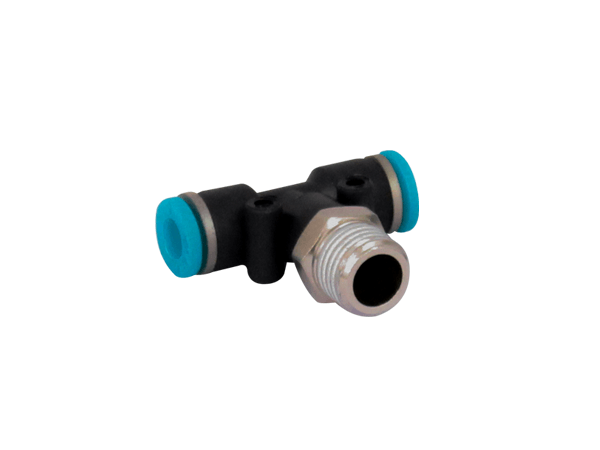

Male Tee (Apb)

Product Details

Model	APB
Body	PBT
Pressure	10 Kg/Cm²
Temperature	50°C
Sleev	POM
Pipe Size	4, 6, 8, 10, 12, 14, 16

---

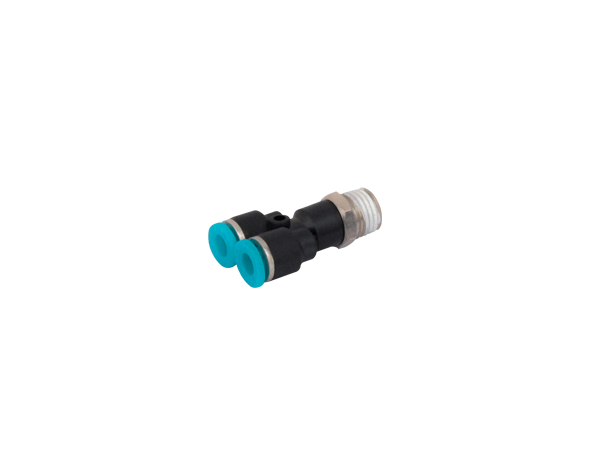

Male Y (Apwt)

Product Details

Model	APWT
Body	Brass Plated / PBT
Pressure	10 Kg/Cm²
Temperature	50°C
Sleev	POM
Pipe Size	4, 6, 8, 10, 12, 14, 16
Conn. Size	M5, M6, 1/8", 1/4", 3/8", 1/2"

---

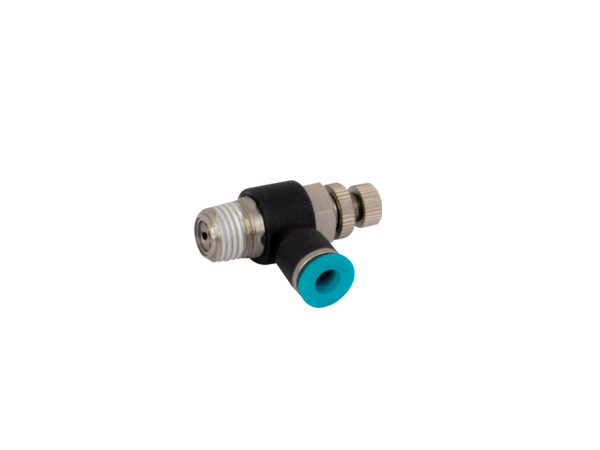

Male Flow Control (Asc)

Product Details

Model	ASC
Body	Brass Plated / PBT
Pressure	10 Kg/Cm²
Temperature	50°C
Sleev	POM
Pipe Size	4, 6, 8, 10, 12, 14, 16
Conn. Size	M5, M6, 1/8", 1/4", 3/8", 1/2"

---

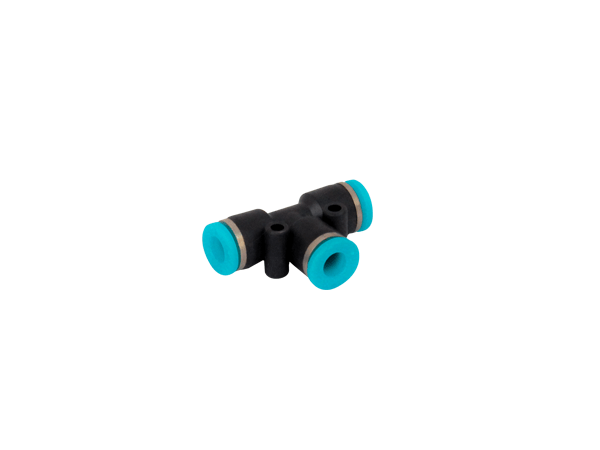

Equal Tee (Ape)

Description

Model	APE
Body	PBT
Pressure	10 Kg/Cm²
Temperature	50°C
Sleev	POM
Pipe Size	4, 6, 8, 10, 12, 14, 16

---

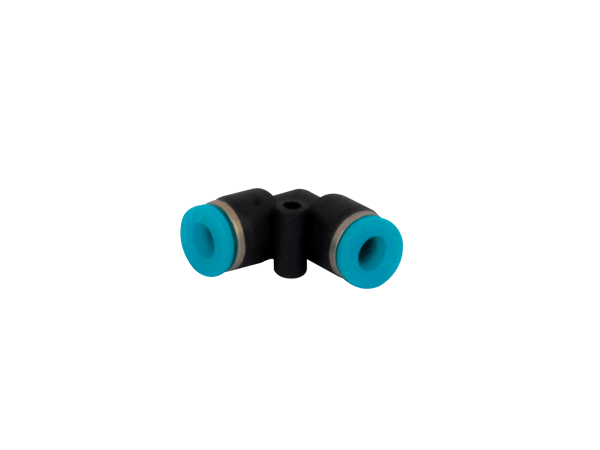

Equal Elbow (Apv)

Product Details

Model	APV
Body	PBT
Pressure	10 Kg/cm²
Temperature	50°C
Sleev	POM
Pipe Size	4, 6, 8, 10, 12, 14, 16



---

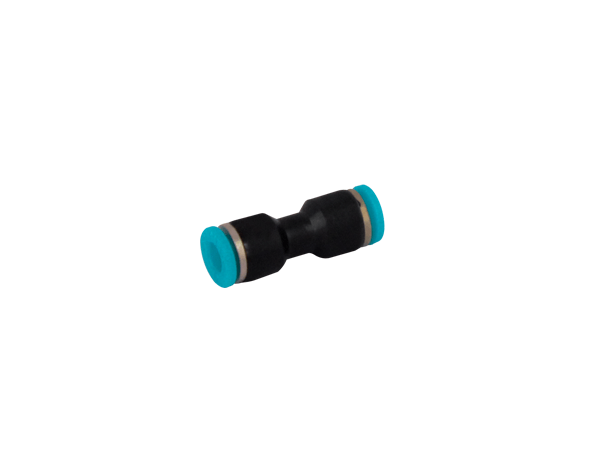

Equal Coupler (Apu)

Product Details

Model	APU
Body	PBT
Pressure	10 Kg/cm²
Temperature	50°C
Sleev	POM
Pipe Size	4, 6, 8, 10, 12, 14, 16

---

Equal Y (Apy)

Product Details

Model	APY
Body	PBT
Pressure	10 Kg/cm²
Temperature	50°C
Sleev	POM
Pipe Size	4, 6, 8, 10, 12, 14, 16

---

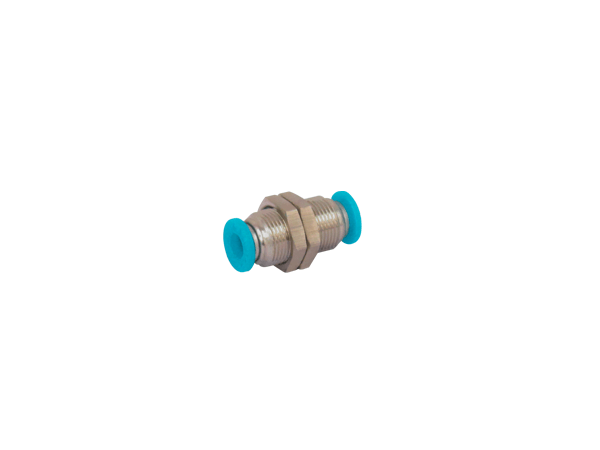

Equal Adbulkhe (Apm)

Product Details

Model	APM
Body	Brass Plated
Pressure	10 Kg/cm²
Temperature	50°C
Sleev	POM
Pipe Size	4, 6, 8, 10, 12, 14, 16

---

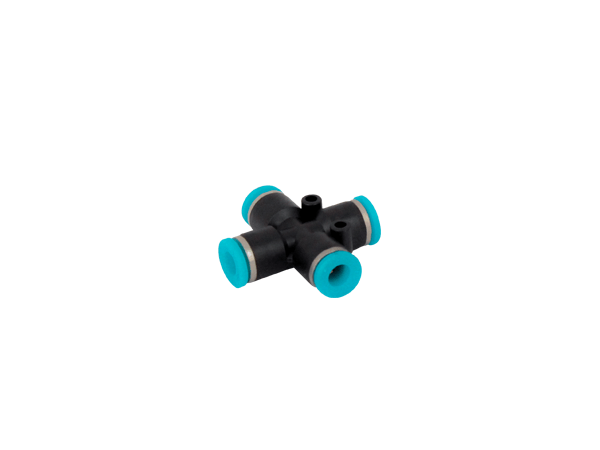

Equal Cross (Apza)

Product Details

Model	APZA
Body	PBT
Pressure	10 Kg/cm²
Temperature	50°C
Sleev	POM
Pipe Size	4, 6, 8, 10, 12, 14, 16

---

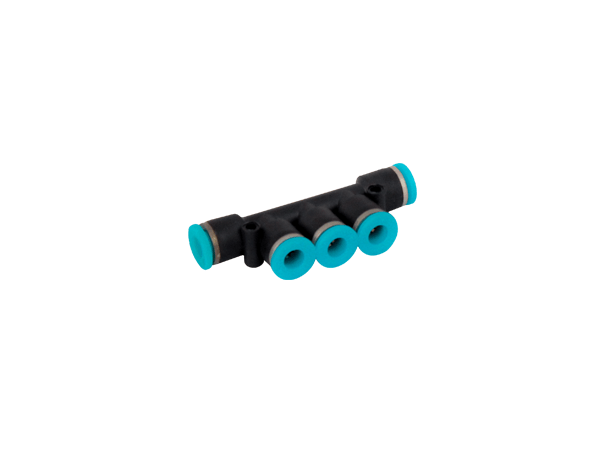

Equal Junction (Apk)

Product Details

Model	APK
Body	PBT
Pressure	10 Kg/cm²
Temperature	50°C
Sleev	POM
Pipe Size	4, 6, 8, 10, 12, 14, 16

---

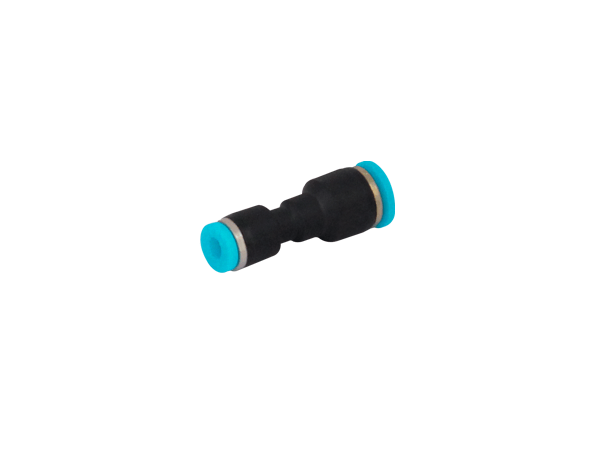

Reducer Coupler (Apg)

Product Details

Model	APG
Body	PBT
Pressure	10 Kg/cm²
Temperature	50°C
Sleev	POM
Pipe Size	4, 6, 8, 10, 12, 14, 16

---

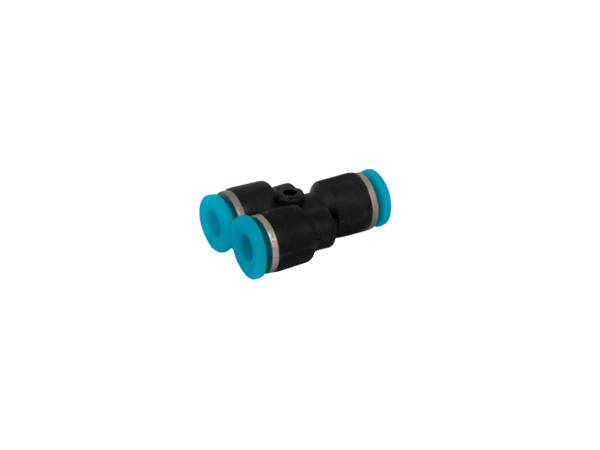

Reducer Y (Apw)

Product Details

Model	APW
Body	PBT
Pressure	10 Kg/cm²
Temperature	50°C
Sleev	POM
Pipe Size	4, 6, 8, 10, 12, 14, 16

---

Reducer Junction (Pkg)

Product Details

Model	PKG
Body	PBT
Pressure	10 Kg/cm²
Temperature	50°C
Sleev	POM
Pipe Size	4, 6, 8, 10, 12, 14, 16

---

Reducer Tee (Peg)

Product Details

Model	PEG
Body	PBT
Pressure	10 Kg/cm²
Temperature	50°C
Sleev	POM
Pipe Size	4, 6, 8, 10, 12, 14, 16
