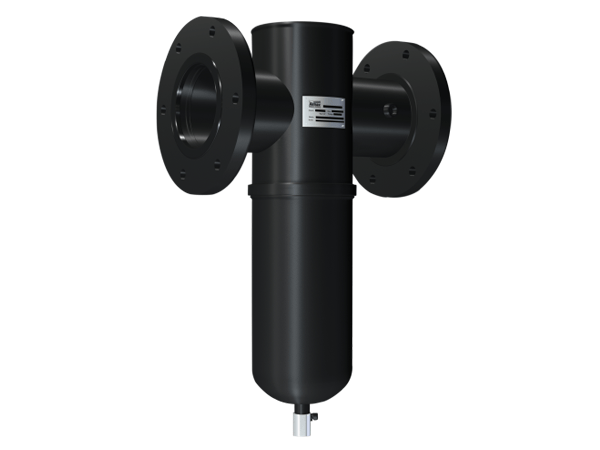

High Flow Air Filter



Product Details

Model	HFF
Size	2.1/2", 3", 4"
Body	Steel Fabricated
Element	25 Micron
Pressure	Up to 12Kg/cm²
Temperature	Up to 50˚C
Media	Compressed Air
Ends	Screwed/Flanged

---

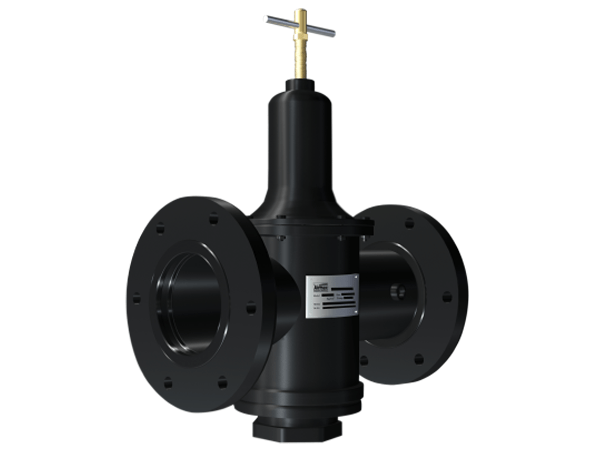

High Flow Air Regulator

Product Details

Model	HFR
Size	2.1/2", 3", 4"
Body	Steel Fabricated
Pressure	Up to 12Kg/cm²
Temperature	Up to 50˚C
Media	Compressed Air
Diaphragm	P.U
Ends	Flanged

---

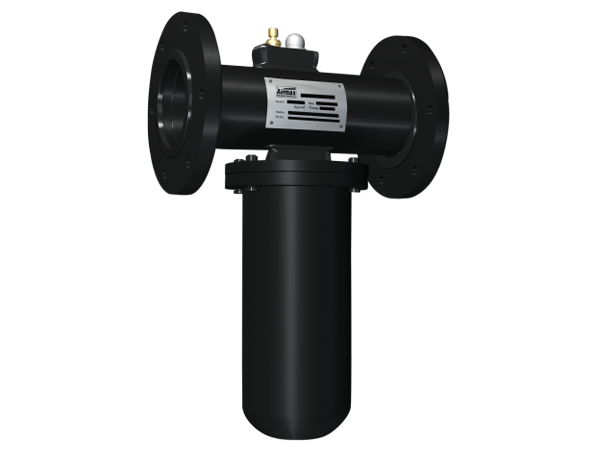

High Flow Air Lubricator



Product Details

Model	HFL
Size	2.1/2", 3", 4"
Body	Steel Fabricated
Bowl	Steel Fabricated
Element	25 Micron
Pressure	Up to 12 Kg/cm²
Temperature	Up to 50˚C
Media	Compressed Air
Ends	Flanged



Note: For Lubrication use Oil Grade-ISO VG32 or Equivalent

---

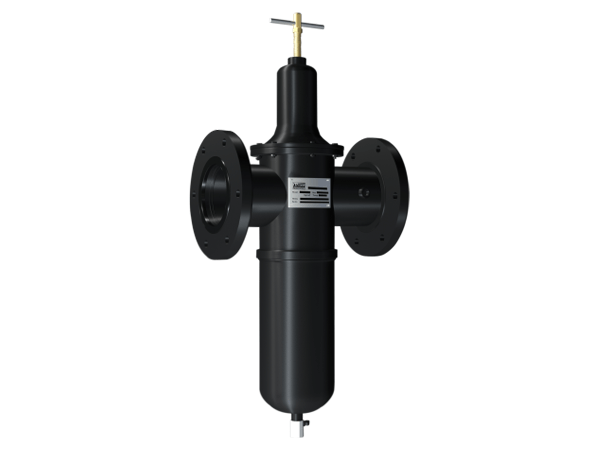

High Flow Air Combination

Product Details

Model	HFC
Size	1.1/2", 2", 2.1/2" ,3", 4"
Body	Steel Fabricated
Bowl	Steel Fabricated
Element	25 Micron
Pressure	Up to 12Kg/cm²
Temperature	Up to 50˚C
End Cover	Flanged
Media	Compressed Air
Note	HFS model with Screwed End Connection also available in 1.1/2" & 2" Size

---
