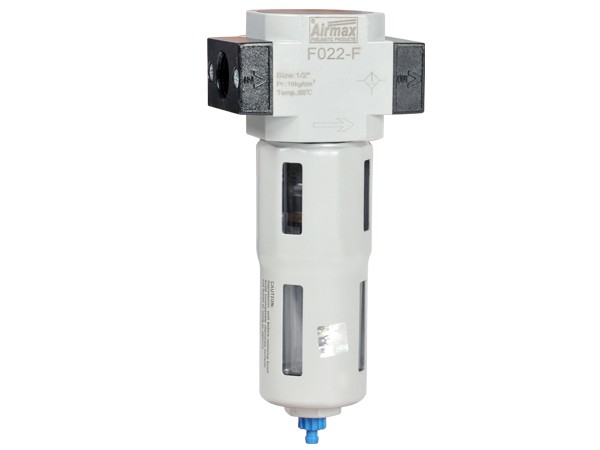

Air Filter



Product Details

Model	F011, F022
Size	1/4" & 1/2"
Body	Zinc Pressure Die Cast
Seals	Hi-Nitrile
Bowl	Poly Carbonate
Element	Sinter Bronze
Pressure	Up to 16 kg/cm²
Temperature	Up to 60˚C
Leakage	Bubble Tight
Media	Compressed Air

---

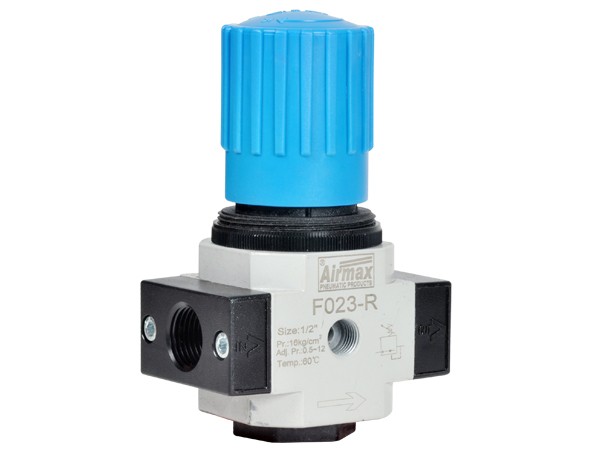

Air Regulator

Product Details

Model	F012, F023
Size	1/4" & 1/2"
Body	Zinc Pressure Die Cast
Seals	Hi-Nitrile
Pressure	Up to 16 kg/cm²
Temperature	Up to 60˚C
Leakage	Bubble Tight
Media	Compressed Air

---

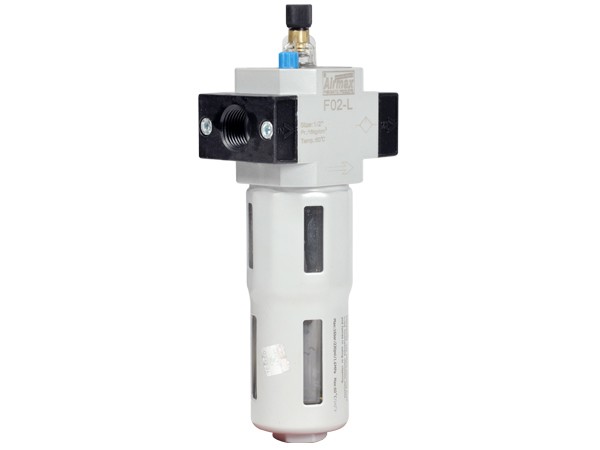

Air Lubricator



Product Details

Model	F013, F024
Size	1/4" & 1/2"
Body	Zinc Pressure Die Cast
Seals	Hi-Nitrile
Pressure	Up to 16 kg/cm²
Temperature	Up to 60˚C
Leakage	Bubble Tight
Media	Compressed Air



Note: For Lubrication use Oil Grade-ISO VG32 or Equivalent

---

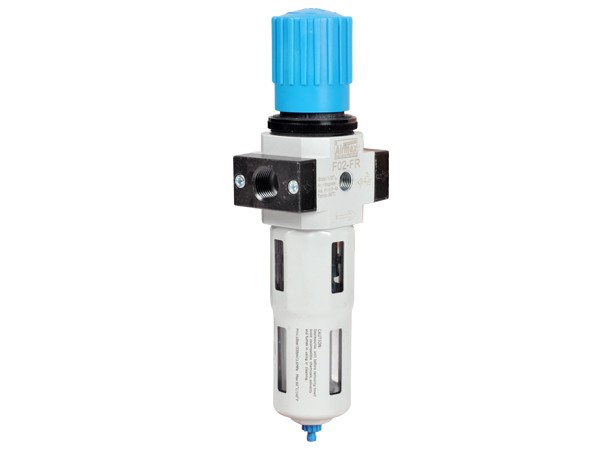

Air Combination

Product Details

Model	F014, F025
Size	1/4" & 1/2"
Body	Zinc Pressure Die Cast
Seals	Hi-Nitrile
Element	Sinter Bronze
Pressure	Up to 16 kg/cm²
Temperature	Up to 60˚C
Leakage	Bubble Tight
Media	Compressed Air

---

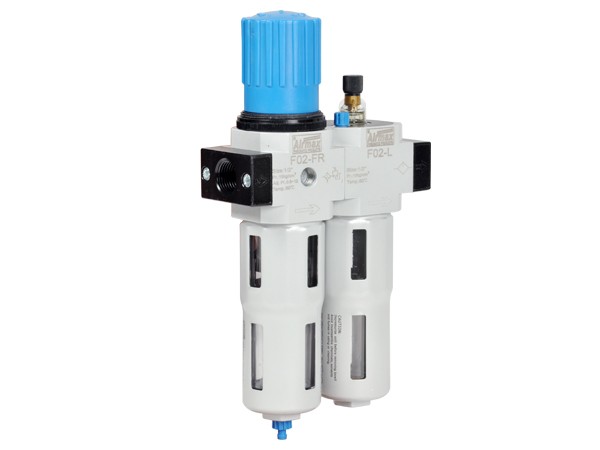

Fr+l Set

Product Details

Model	F01, F02
Size	1/4" & 1/2"
Body	Zinc Pressure Die Cas
Seals	Hi-Nitrile
Element	Sinter Bronze
Pressure	Up to 16 kg/cm²
Temperature	Up to 60˚C
Leakage	Bubble Tight
Media	Compressed Air
