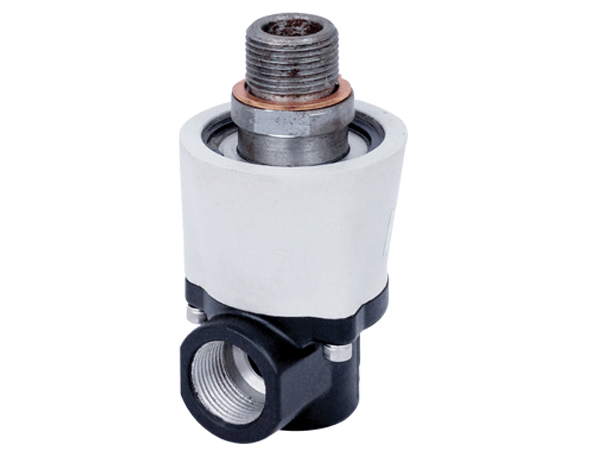

Air Rotary Joint

Product Details

Model	ALR
Size	1/4" to 1.1/2"
Body	Aluminium
Shaft	Steel
RPM	900 Max.
Pressure	8 kg/cm²
Temperature	50˚C
Leakage	Bubble Tight
Media	Air

---

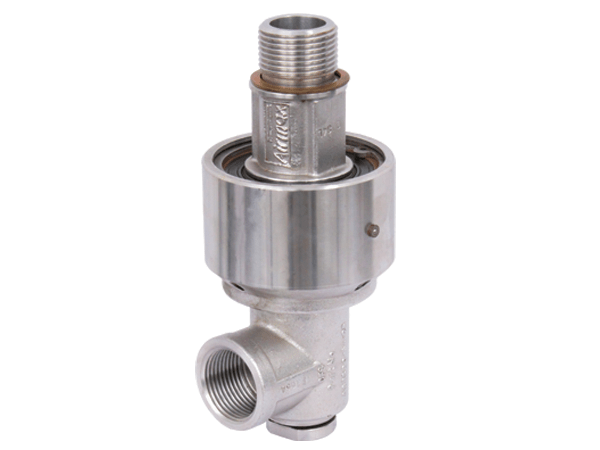

Rotary Joint for Water

Product Details

Model	ASRS
Size	1/4" to 2"
Body	S.S 304 (CF8)
Shaft	S.S 304 (CF8)
RPM	1000
Pressure	8 Kg/cm²
Temperature	50˚C
Media	Normal Water, Air, Oil & Gas

---

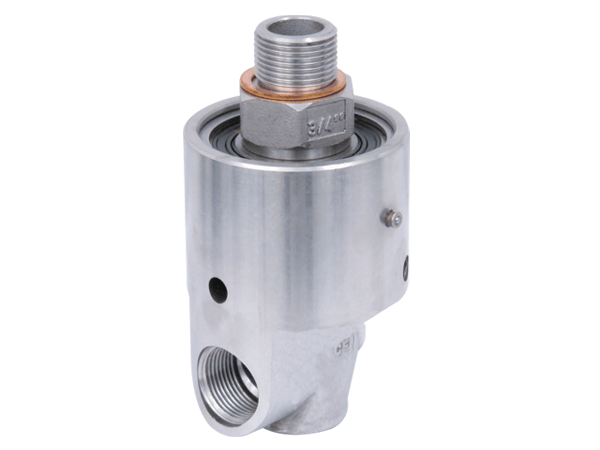

Rotary Joint for Critical Application

Product Details

Model	DRS
Size	1/4" to 2"
Body	S.S 304 (CF8)
Shaft	S.S 304 (CF8)
RPM	3500
Pressure	10 Kg/cm²
Temperature	-5˚C to 150˚C
Media	Water, Poor Quality Water, Chilled / Semi Hot Water



---

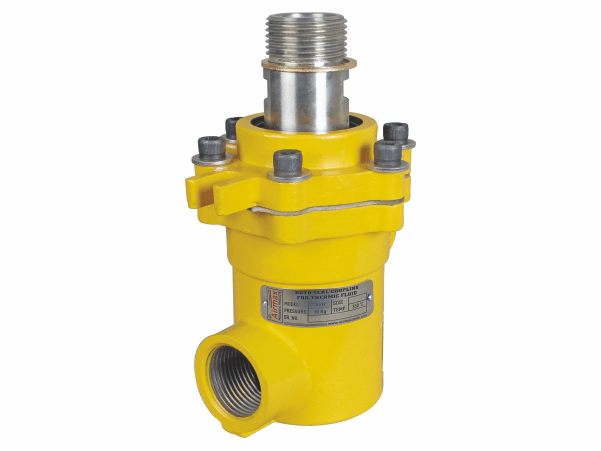

Rotary Joint for Thermic Fluid

Product Details

Model	ARH
Size	3/4" to 2"
Body	Cast Steel (WCB)
Shaft	S. Steel
RPM	300
Seals	Carbon Graphite
Pressure	10 Kg/cm²
Temperature	350°C
Media	Thermic Fluid

---

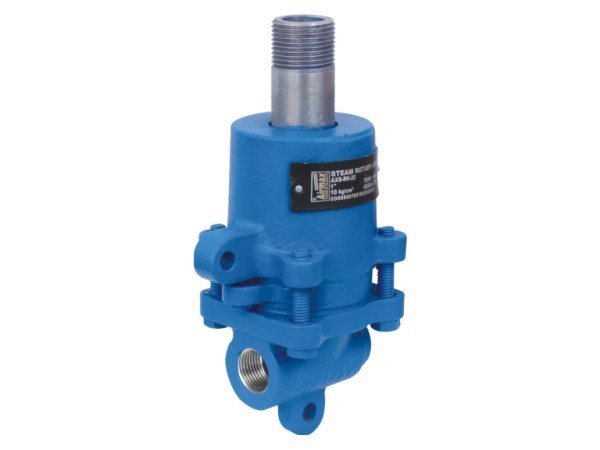

Rotary Joint for Steam

Product Details

Model	AXS
Size	1/2",3/4", 1", 1.1/4", 1.1/2", 2"
Body	Cast Iron
Shaft	Steel Plated
RPM	200
Seals	Carbon Graphite
Pressure	10 Kg/cm²
Temperature	180˚C
Media	Steam

---

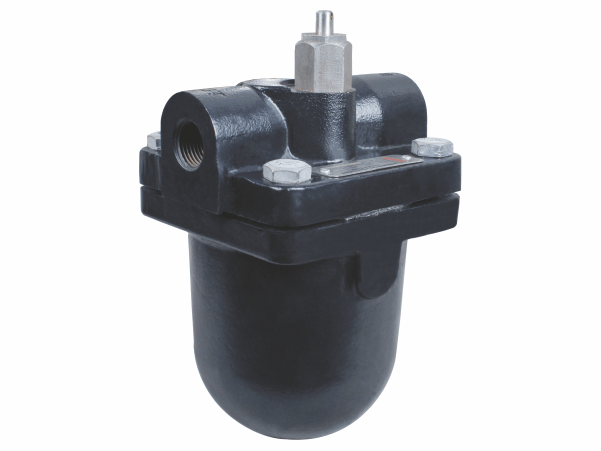

Steam Trap Float Type Valve

Product Details

Model	SBD
Size	1/2" to 2"
Body	Cast Iron
Pressure	10 kg/cm²
Temperature	200˚C
Leakage	Bubble Tight
Media	Steam
