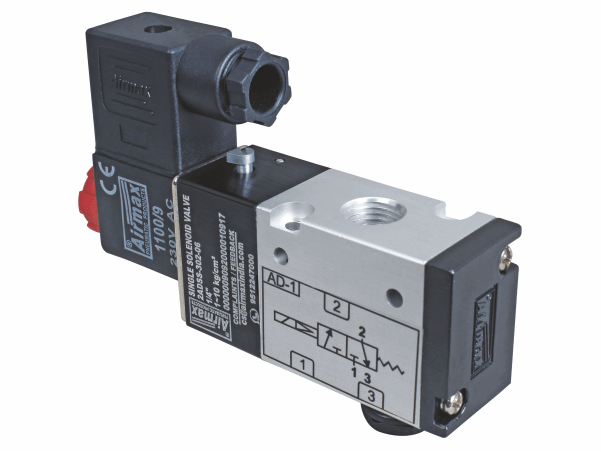

3/2 Way Single Solenoid Valve



Product Details

Model	2ADSS-3
Size	1/4”, 1/2”
Body	Aluminium Anodized
Seals	Nitrile
Pressure	1 to 10 Kg/Cm²
Temperature	5 to 55°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)
Coil Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)
Duty Cycle	Continues Rated
Protection	IP 65 Class F
Connector	DIN 43650 B

---

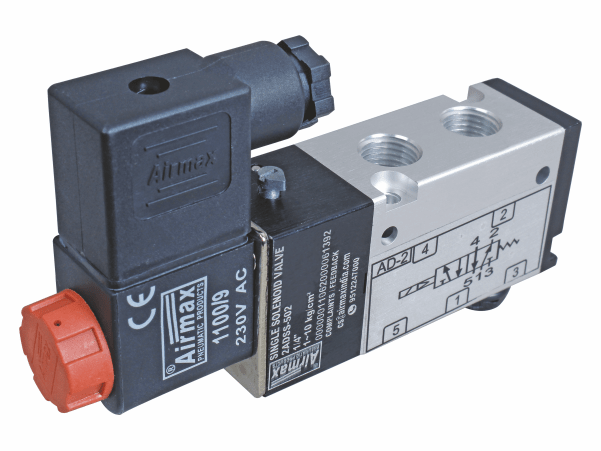

5/2 Way Single Solenoid Valve

Product Details

Model	2ADSS-5
Size	1/4”, 1/2”
Body	Aluminium Anodized
Seals	Nitrile
Pressure	1 to 10 Kg/Cm²
Temperature	5 to 55°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)
Coil Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)
Duty Cycle	Continues Rated
Protection	IP 65 Class F
Connector	DIN 43650 B

---

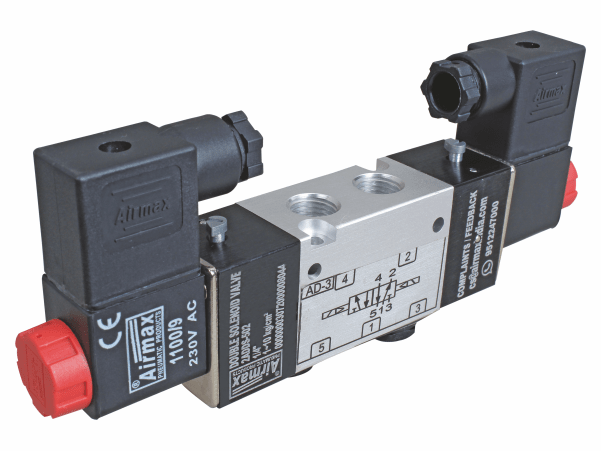

5/2 Way Double Solenoid Valve



Product Details

Model	2ADDS - 5
Size	1/4”,1/2”
Body	Aluminium Anodized
Seals	Nitrile
Pressure	1 to 10 Kg/Cm²
Temperature	5 to 55°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)
Coil Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)
Duty Cycle	Continues Rated
Protection	IP 65 Class F
Connector	DIN 43650 B

---

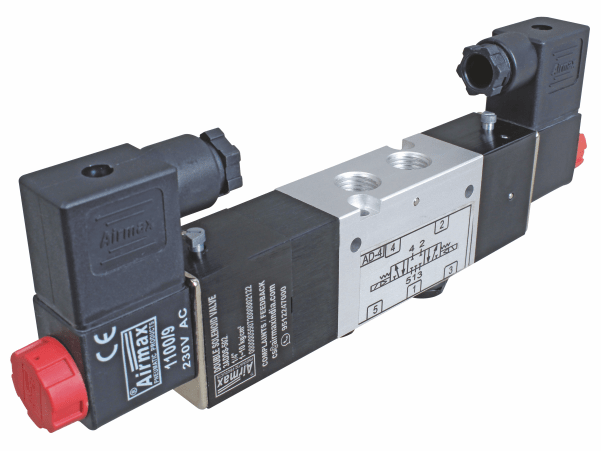

5/3 Way Double Solenoid Valve

Product Details

Model	3ADDS-5
Size	1/4”,1/2”
Body	Aluminium Anodized
Seals	Nitrile
Pressure	1 to 10 Kg/Cm²
Temperature	5 to 55°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)
Coil Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)
Duty Cycle	Continues Rated
Protection	IP 65 Class F
Connector	DIN 43650 B

---

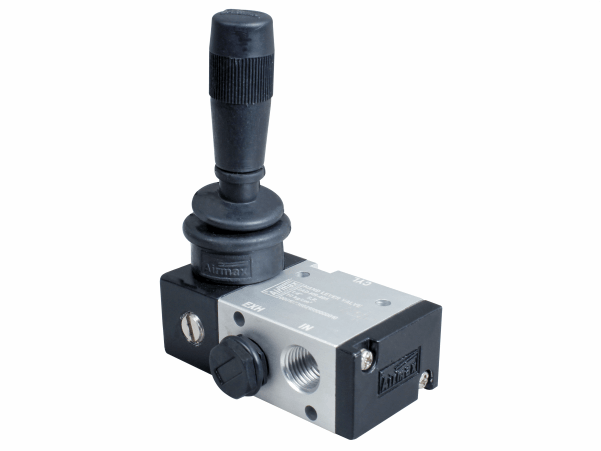

3/2 Way Hand Lever Valve Spring Return / Detent

Product Details

Model	2AD-HR-4
Size	1/4”, 1/2”
Body	Aluminium Anodized
Seals	Nitrile
Pressure	10 Kg/Cm²
Temperature	5 to 55°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

5/2 Hand Lever Valve Spring Return / Detent

Product Details

Model	2AD-HR-5
Size	1/4”, 1/2”
Body	Aluminium Anodized
Seals	Nitrile
Pressure	10 Kg/Cm²
Temperature	5 to 55°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

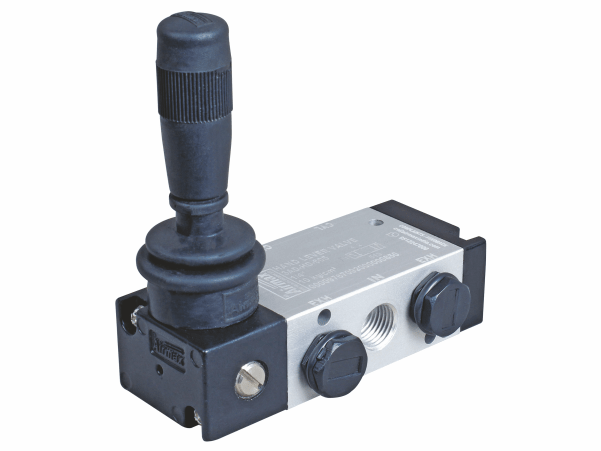

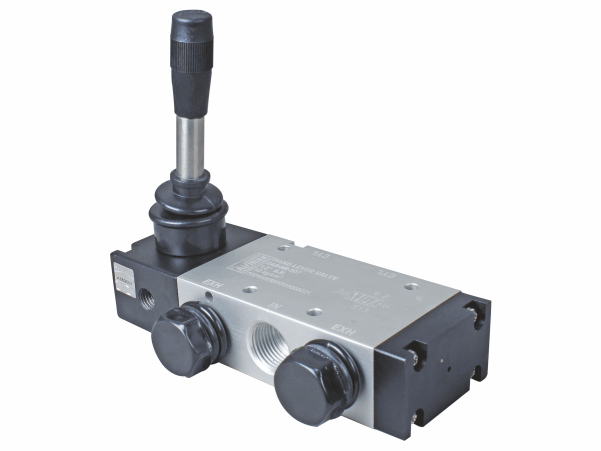

5/3 Way Hand Lever Valve Detent

Product Details

Model	3AD-HR-607
Size	1/2”
Body	Aluminium Anodized
Valve Type	PAN | PHN | PRN
Seals	Nitrile
Pressure	10 Kg/Cm²
Temperature	5 to 55°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

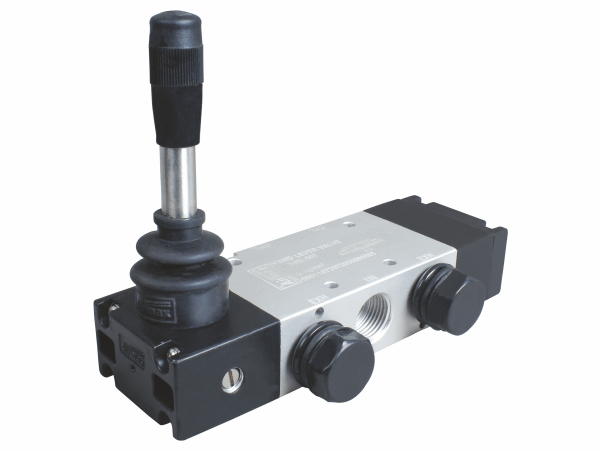

5/3 Way Hand Lever Valve Center Spring

Product Details

Model	3AD-HR-605
Size	1/4”
Body	Aluminium Anodized
Valve Type	PAN | PHN | PRN
Seals	Nitrile
Pressure	10 Kg/Cm²
Temperature	5 to 55°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

3/2 Way Push Pull Valve Spring Return / Detent

Product Details

Model	2AD-PR-4
Size	1/4”, 1/2”
Body	Aluminium Anodized
Seals	Nitrile
Pressure	10 Kg/Cm²
Temperature	5 to 55°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

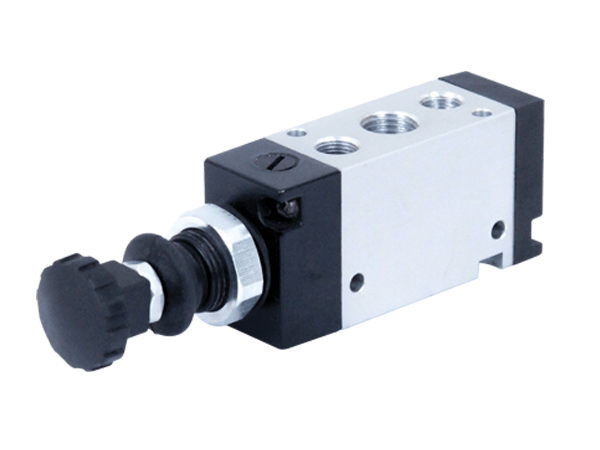

5/2 Way Push Pull Valve Spring Return / Detent

Product Details

Model	2AD-PR5 | 2AD-PD5
Size	1/4”, 1/2”
Body	Aluminium Anodized
Seals	Nitrile
Pressure	10 Kg/Cm²
Temperature	5 to 55°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

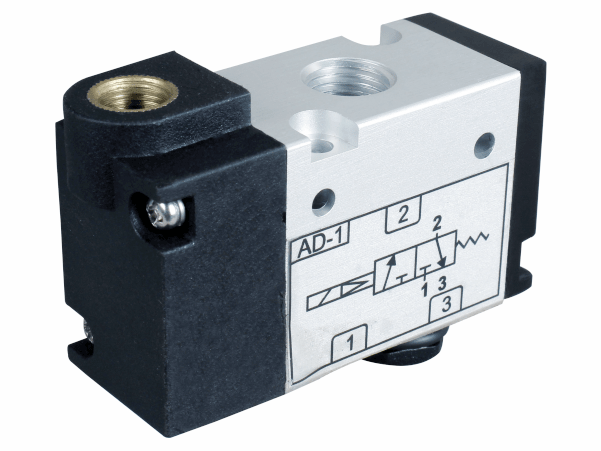

3/2 Way Single Pilot Valve

Product Details

Model	2ADSP-3
Size	1/4”, 1/2”
Body	Aluminium Anodized
Seals	Nitrile
Pressure	1 to 10 Kg/Cm²
Temperature	5 to 55°C
Leakage	Bubble Tight
Media	Compresssed Air (Filtered & Lubricated)

---

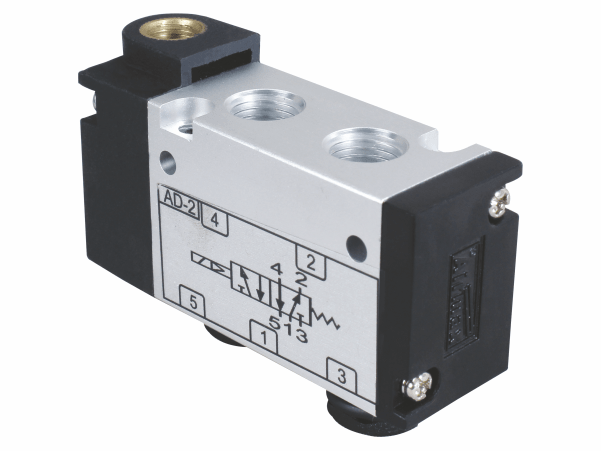

5/2 Way Single Pilot Valve

Product Details

Model	2ADSP-5
Size	1/4”, 1/2”
Body	Aluminium Anodized
Seals	Nitrile
Pressure	1 to 10 Kg/Cm²
Temperature	5 to 55°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

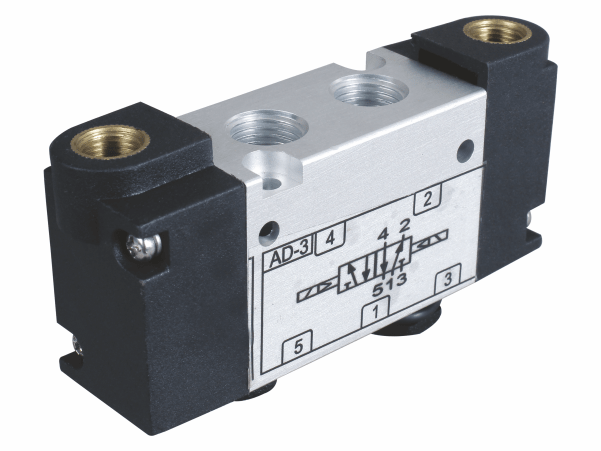

5/2 Way Double Pilot Valve

Product Details

Model	2ADDP-5
Size	1/4”, 1/2”
Body	Aluminium Anodized
Seals	Nitrile
Pressure	1 to 10 Kg/Cm²
Temperature	5 to 55°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

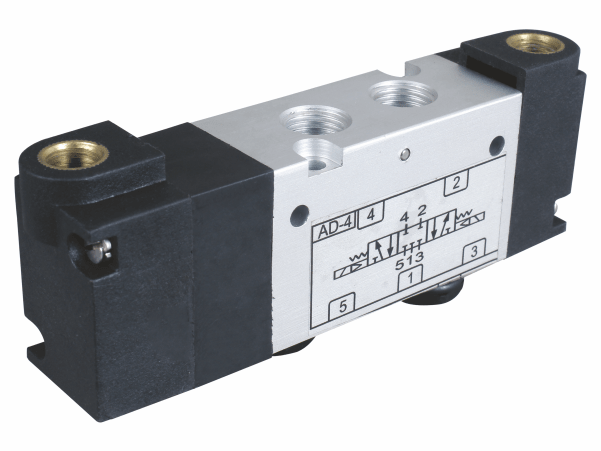

5/3 Way 3 Position Double Pilot Valve

Product Details

Model	3ADDP-5
Size	1/4”, 1/2”
Body	Aluminium Anodized
Valve Type	PAN | PHN | PRN
Seals	Nitrile
Pressure	1 to 10 Kg/Cm²
Temperature	5 to 55°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

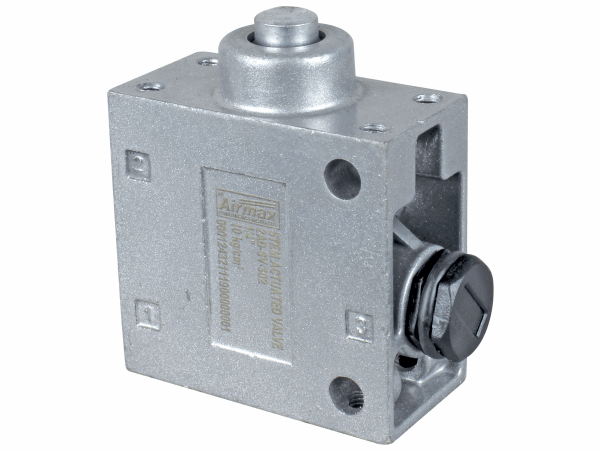

3/2 Way Stem Actuated Valve



Product Details



Model	2AD-SV-302 (3/2)
Size	¼”
Body	Aluminium Pressure Die Cast
Shaft	EN 8 Hard Chrome Plated
Seals	Hi - Nitrile
Pressure	Upto 10 Kg/cm2
Temperature	Upto 55 °C (Max.)
Leakage	Bubble Tight
Media	Compressed Air (Use Filtered & Lubricated)

---

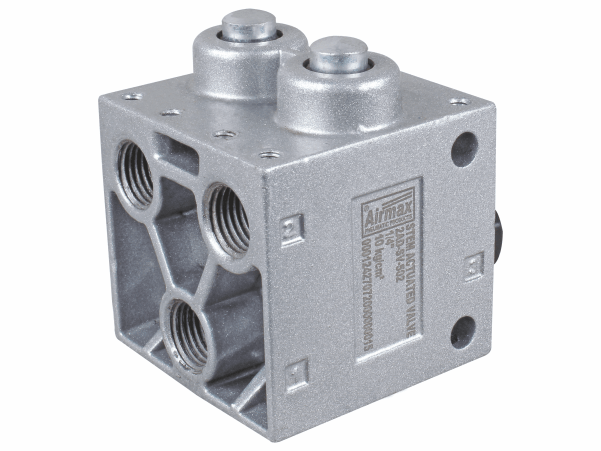

5/2 Way Stem Actuated Valve

Product Details



Model	2AD-SV-502 (5/2)
Size	1/4"
Body	Aluminium Pressure Die Cast
Seals	Hi - Nitrile
Pressure	Upto 10 Kg/cm²
Temperature	Upto 55 °C (Max.)
Leakage	Bubble Tight
Media	Compressed Air (Use Filtered & Lubricated)

---

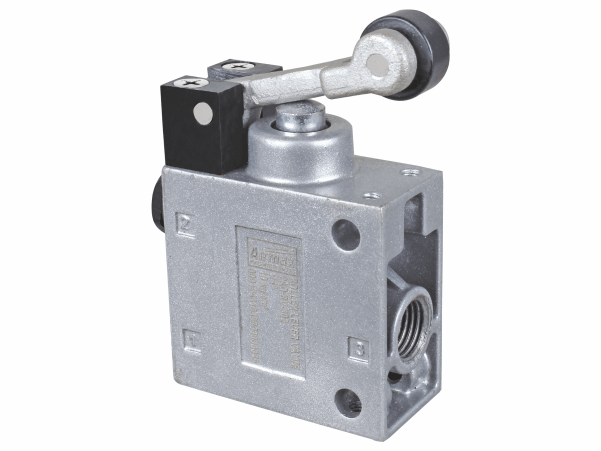

3/2 Poppet Type Roller Lever Valve

Product Details

Model	2AD-RV-302 (3/2)
Size	¼”
Body	Aluminium Pressure Die Cast
Shaft	EN 8 Hard Chrome Plated
Seals	Hi - Nitrile
Pressure	Upto 10 Kg/cm2
Temperature	Upto 55 OC (Max.)
Leakage	Bubble Tight
Media	Compressed Air (Use Filtered & Lubricated)



Description

This is Our 2AD-RV-302 Model 3/2 Poppet Type Roller Lever Valve

---

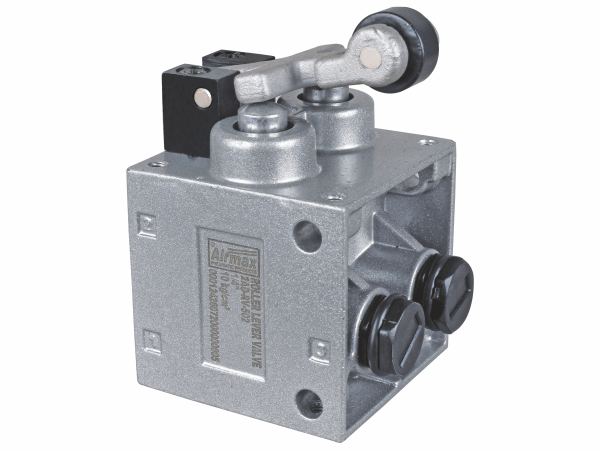

5/2 Poppet Type Roller Lever Valve

Product Details

Model	2AD-RV-502 (5/2)
Size	¼”
Body	Aluminium Pressure Die Cast
Seals	Hi - Nitrile
Pressure	Upto 10 Kg/cm²
Temperature	Upto 55 °C (Max.)
Leakage	Bubble Tight
Media	Compressed Air (Use Filtered & Lubricated)

---

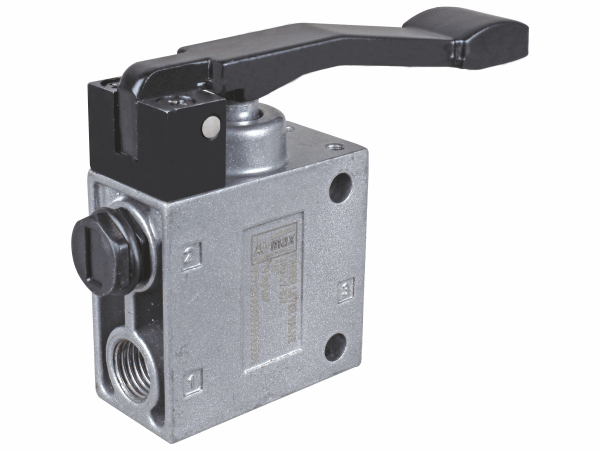

3/2 Way Poppet Type Finger Lever Valve

Product Details

Model	2AD-LV-302 (3/2)
Size	¼”
Body	Aluminium Pressure Die Cast
Seals	Hi - Nitrile
Pressure	Upto 10 Kg/cm2
Temperature	Upto 55 °C (Max.)
Leakage	Bubble Tight
Media	Compressed Air (Use Filtered & Lubricated)

---

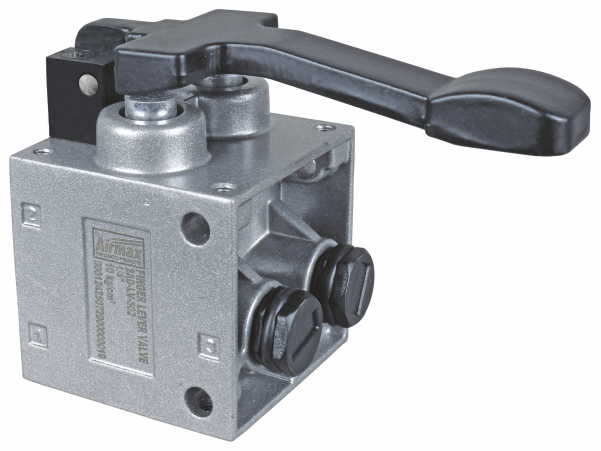

5/2 Poppet Type Finger Lever Valve

Product Details

Model	2AD-LV-502 (5/2)
Size	¼”
Body	Aluminium Pressure Die Cast
Shaft	EN 8 Hard Chrome Plated
Seals	Hi - Nitrile
Pressure	Upto 10 Kg/cm2
Temperature	Upto 55 OC (Max.)
Leakage	Bubble Tight
Media	Compressed Air (Use Filtered & Lubricated)

---

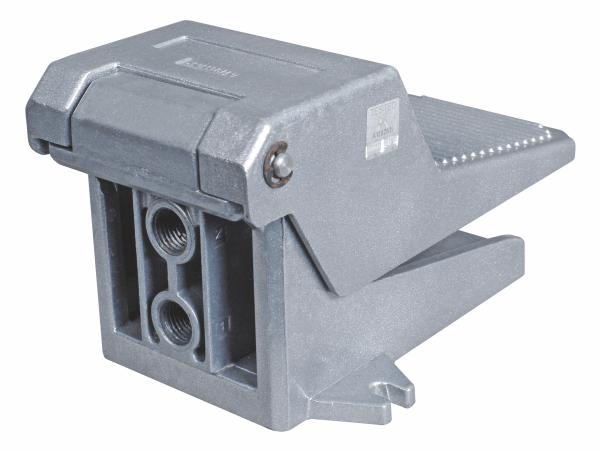

3/2 Foot Operated Valves (Detent / Spring Return)

Product Details

Model	2AD-FV-302 (3/2 Detent) | 2AD-FS-302 (3/2 Spring Return)
Size	¼”
Body	Aluminium Pressure Die Cast
Shaft	EN 8 Hard Chrome Plated
Seals	Hi - Nitrile
Pressure	Upto 10 Kg/cm2
Temperature	Upto 55 OC (Max.)
Leakage	Bubble Tight
Media	Compressed Air (Use Filtered & Lubricated)

---

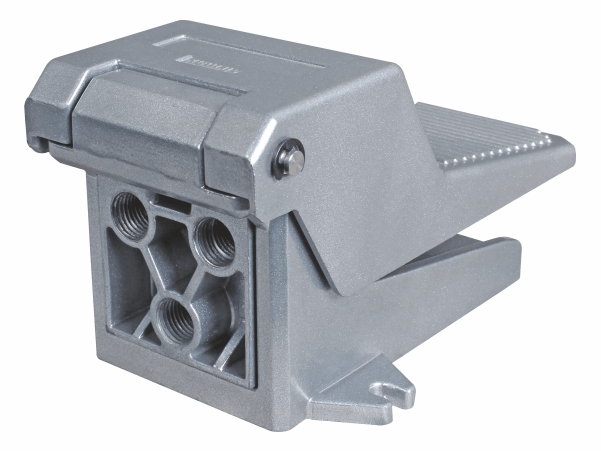

5/2 Foot Operated Valves (Detent / Spring Return)

Product Details

Model	2AD-FV-502 (5/2 Detent) | 2AD-FS-502 (5/2 Spring Return)
Size	1/4"
Body	Aluminium Pressure Die Cast
Seals	Hi - Nitrile
Pressure	Upto 10 Kg/cm²
Temperature	Upto 55 °C (Max.)
Leakage	Bubble Tight
Media	Compressed Air (Use Filtered & Lubricated)
