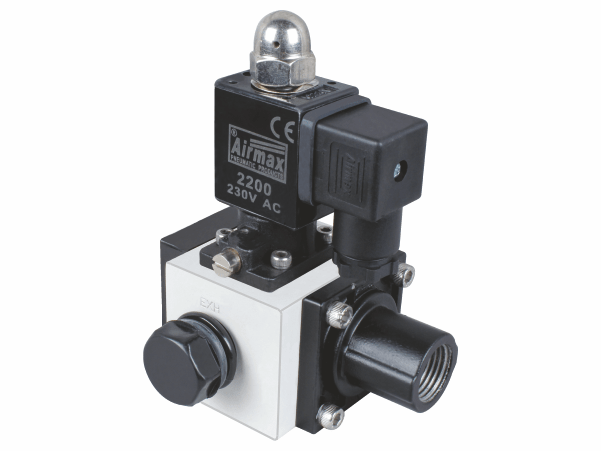

3/2 Way Poppet Type Single Solenoid Valve



Product Details

Model	PPT-32
Size	1/2", 3/4", 1", 1.½"
Body	Aluminium
Seals	Nitrile
Pressure	2.5 to 10 Kg/cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)
Coil Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)

---

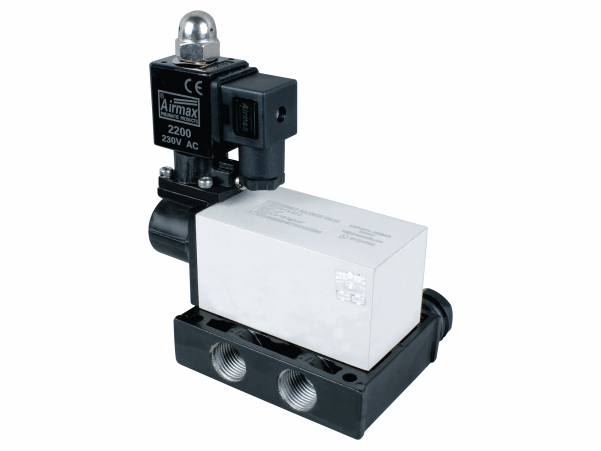

5/2 Way Poppet Type Single Solenoid Valve

Product Details

Model	PPTS-52, PPT-52
Size	(3/8" Basic: 1/4", 3/8", 1/2") | (3/4" Basic: 1/2", 3/4", 1")
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	2.5 to 10 Kg/cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)
Coil Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)

---

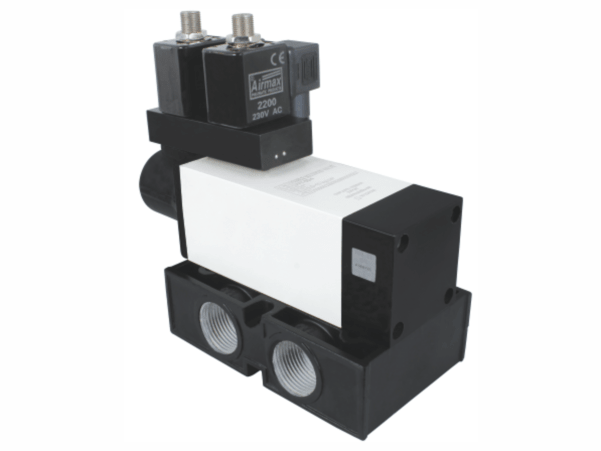

5/2 Way Poppet Type Double Solenoid Valve



Product Details

Model	PPTS-55, PPT-55
Size	(3/8" Basic: 1/4", 3/8", 1/2") | (3/4" Basic: 1/2", 3/4", 1")
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	2.5 to 10 Kg/cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)
Coil Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)

---

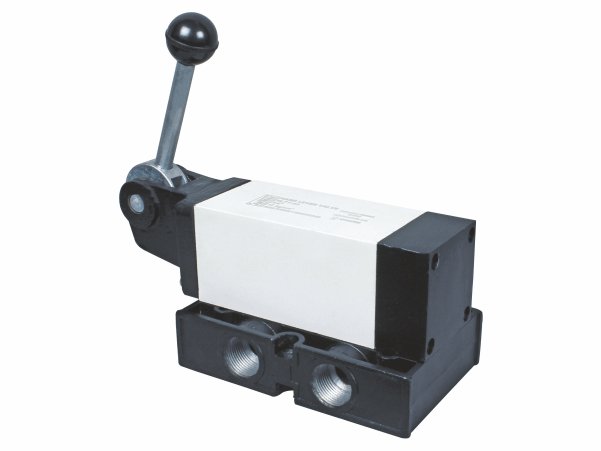

5/2 Way Poppet Type Hand Lever Valve

Product Details

Model	HLPT
Size	1/2", 3/4", 1"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	0.5 to 10 Kg/cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

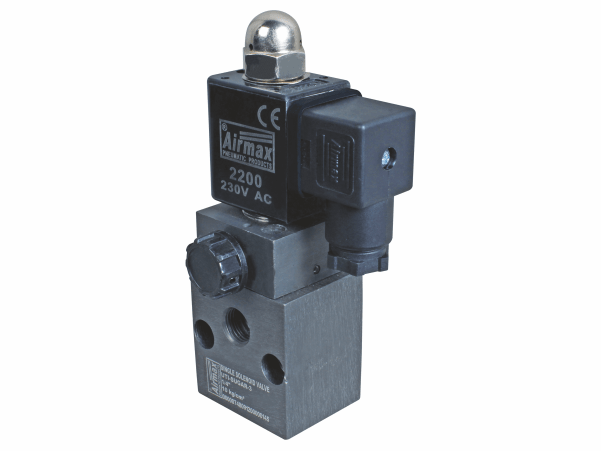

3/2 Way Poppet Type Sugar Solenoid Valve

Product Details

Model	UTI–Sugar–302
Size	1/4"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	2.5 to 10 Kg/cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)
Coil Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)

---

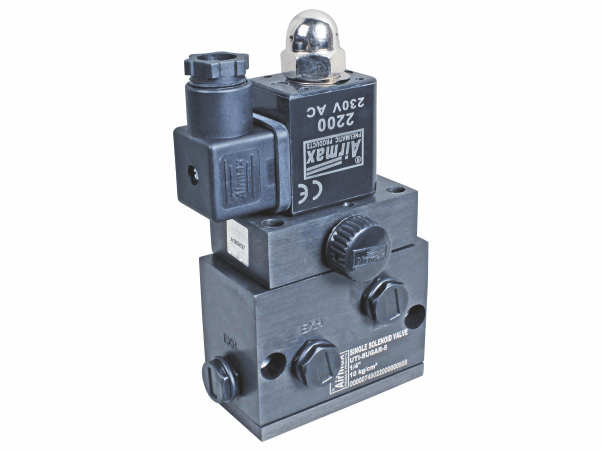

5/2 Way Poppet Type Sugar Solenoid Valve

Product Details

Model	UTI–Sugar–502
Size	1/4"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	2.5 to 10 Kg/cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)
Coil Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)

---

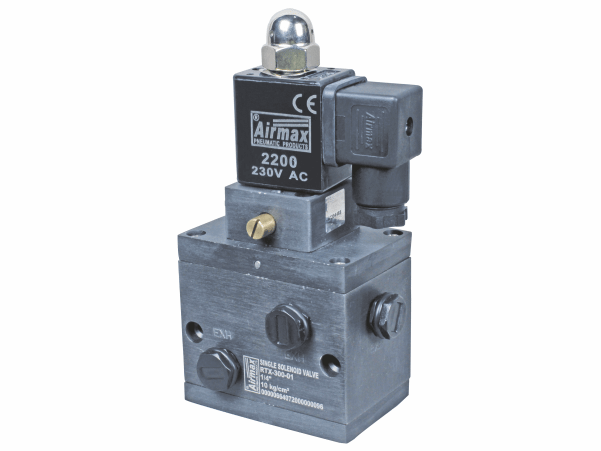

5/2 Way Poppet Type Solenoid Valve

Product Details

Model	RTX - 300
Size	1/4"
Body	Aluminium Hard Anodized
Seals	Hi - Nitrile
Pressure	2.5 to 10 Kg/cm²
Temperature	80 °C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)
Coil Volt	12V, 24V, 48V, 110V, 230V AC / DC​
