CJ 2/2 Way Direct Acting Solenoid Valve Normally Closed



Product Details

Model	CJDS – 02 – 202 / CJDS – 03 - 202
Size	¼” BSP
Body	Aluminium Pressure Die Cast
Seals	Hi – Nitrile
Pressure	10 Kg/cm²
Temperature	Upto 80 °C
Leakage	Bubble Tight
Media	Air (Filtered & Lubricated)
Coil Volt	12V, 24V, 48V, 110V, 230V (AC/DC)
Orific	2 MM
Note	CJDS – 03 – 202 Model with Manual Over Ride

---

CJ 3/2 Way Direct Acting Solenoid Valve Normally Closed

Product Details

Model	CJDS – 09 – 202 / CJDS – 10 - 202
Size	1/4" BSP
Body	Aluminium Pressure Die Cast
Seals	Hi – Nitrile
Pressure	10 Kg/cm²
Temperature	Upto 80 °C
Leakage	Bubble Tight
Media	Air (Filtered & Lubricated)
Coil Volt	12V, 24V, 48V, 110V, 230V (AC/DC)
Orific	2 MM
Note	CJDS – 10 – 202 Model with Manual Over Ride

---

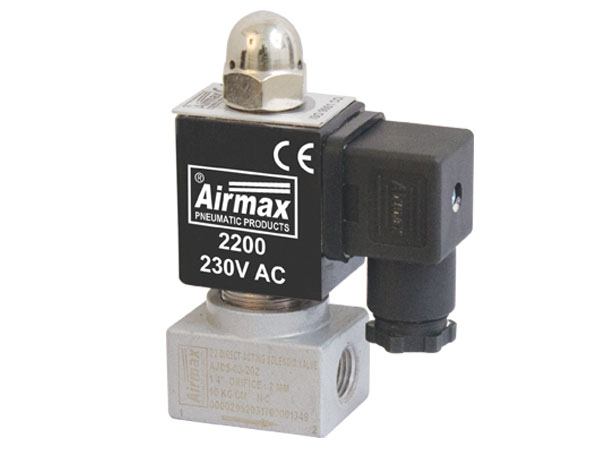

2/2 Way Direct Acting Solenoid Valve



Product Details

Model	AJCS-01-202
Size	1/4"
Body	Aluminium Press. Die Cast
Pressure	10 Kg/cm²
Temperature	Up to 55˚C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)
Coil Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)

---

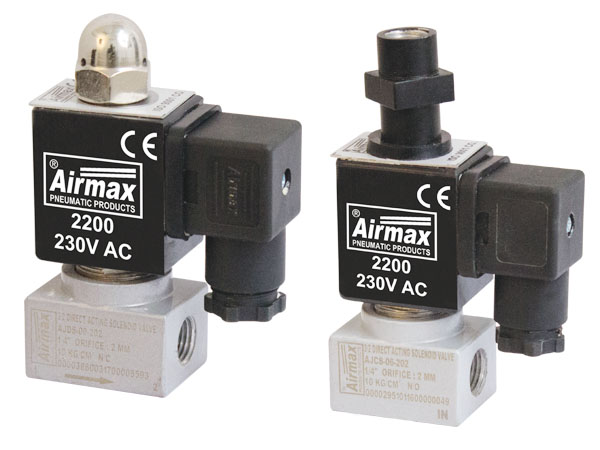

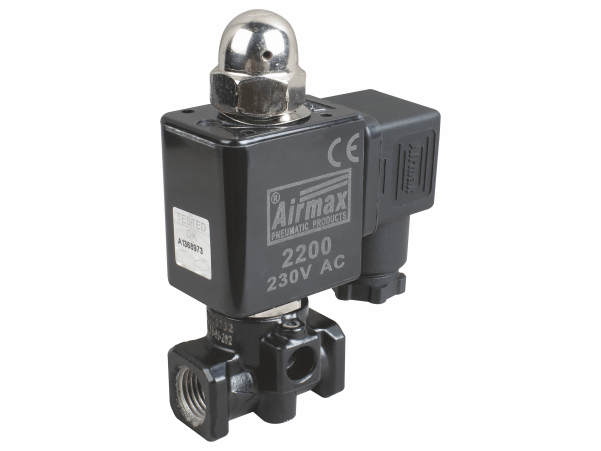

3/2 Way Direct Acting Solenoid Valve

Product Details

Model	AJDS-08-202 l AJDS-09-202 l AJDS-10-202
Size	1/4" BSP
Body	Aluminium Press. Die Cast
Pressure	7 Kg/cm² | 10 Kg/cm² | 20 Kg/cm²
Temperature	Up to 55°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)
Coil Volt	24V, 48V, 110V, 230V DC

---

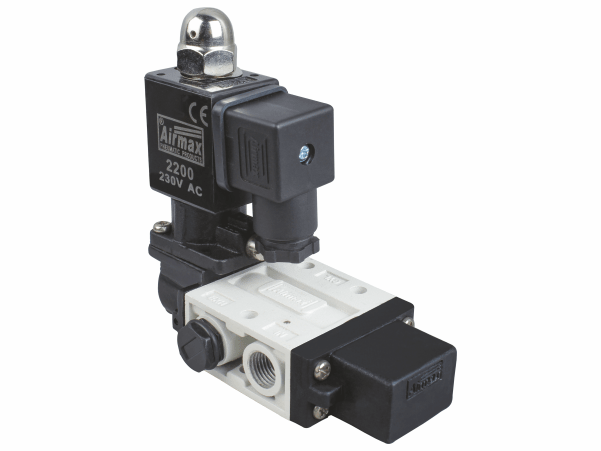

3/2 Way Single Solenoid Valve

Product Details

Model	2ARMSS - 3
Size	1/4", 1/2"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	2.5 to 10 Kg/cm²
Temperature	80˚C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)
Coil Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)
Duty Cycle	Continues Rated
Protection	IP 65 (flameproof available)
Connector	DIN 43650 A

---

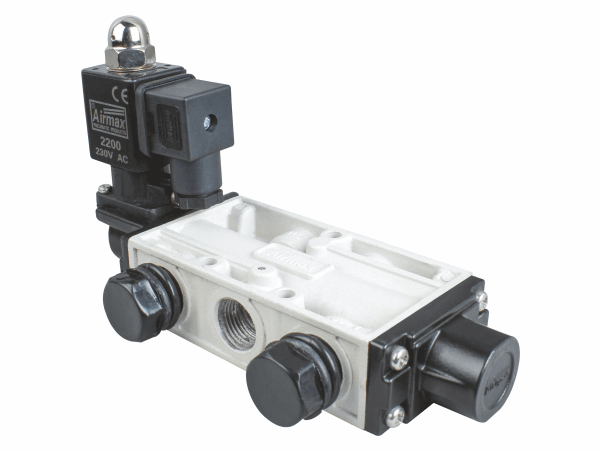

5/2 Way Single Solenoid Valve

Product Details

Model	2ARMSS-5
Size	1/4", 1/2"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	2.5 to 10 Kg/cm²
Temperature	80˚C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)
Coil Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)
Duty Cycle	Continues Rated
Protection	IP 65 (flameproof available)
Connector	DIN 43650 A

---

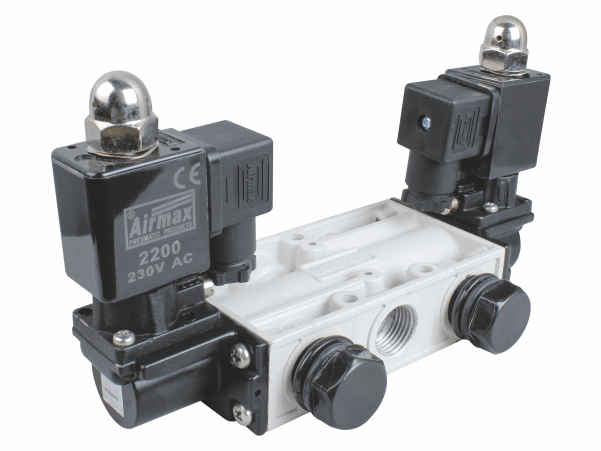

5/2 Way Double Solenoid Valve

Product Details

Model	2ARMDS-5
Size	1/4", 1/2"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	2.5 to 10 Kg/cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)
Coil Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)
Duty Cycle	Continues Rated
Protection	IP 65 (flameproof available)
Connector	DIN 43650 A

---

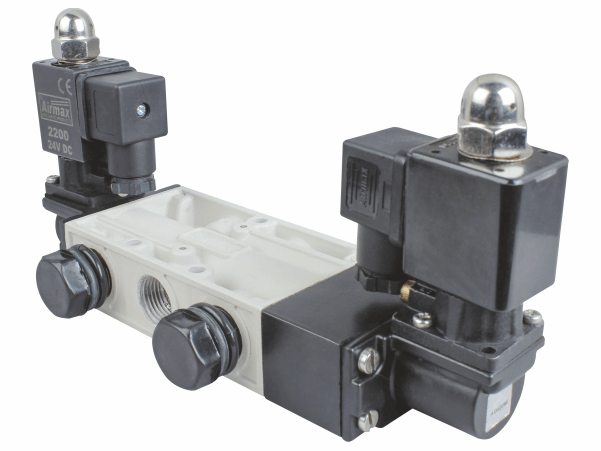

5/3 Way 3 Position Double Solenoid Valve

Product Details

Model	3ARMDS-5
Size	1/4", 1/2"
Body	Aluminium Press. Die Cast
Valve Type	PAN | PHN | PRN
Seals	Nitrile
Pressure	2.5 to 10 Kg/cm²
Temperature	80˚C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)
Coil Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)
Duty Cycle	Continues Rated
Protection	IP 65 (flameproof available)
Connector	DIN 43650 A

---

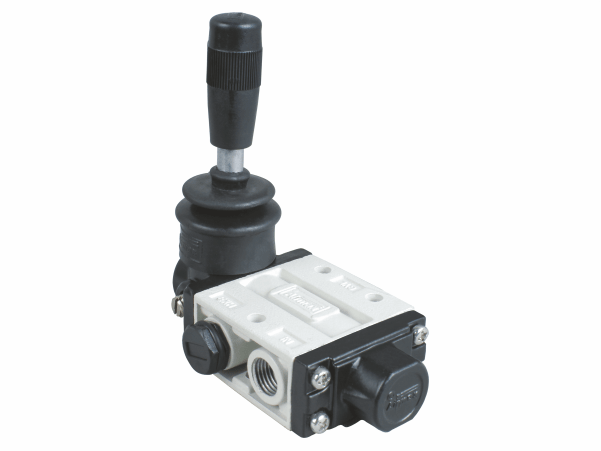

3/2 Way Hand Lever Valve

Product Details

Model	2ARMHLV-3
Size	1/4", 1/2"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	10 Kg/cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

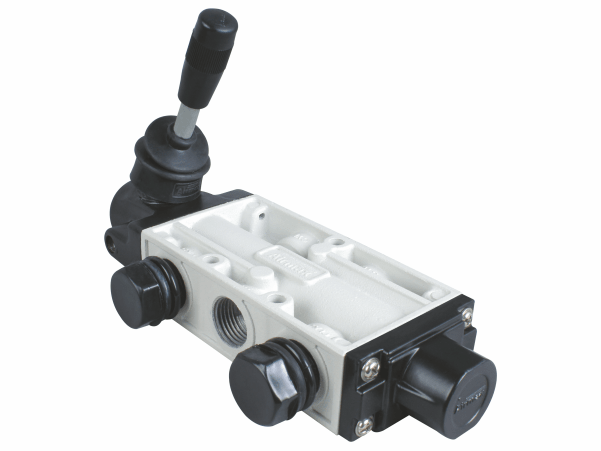

5/2 Way Hand Lever Valve Spring Return / Detent

Product Details

Model	2ARMHLV-5
Size	1/4", 1/2"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	10 Kg/cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

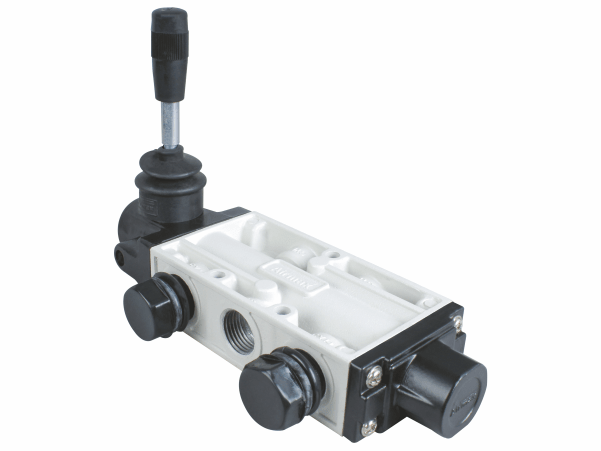

5/3 Way Hand Lever Valve Detent

Product Details

Model	3ARMHLV-5
Size	1/4", 1/2"
Body	Aluminium Press. Die Cast
Valve Type	PAN | PHN | PRN
Seals	Nitrile
Pressure	10 Kg/cm²
Temperature	Up to 80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

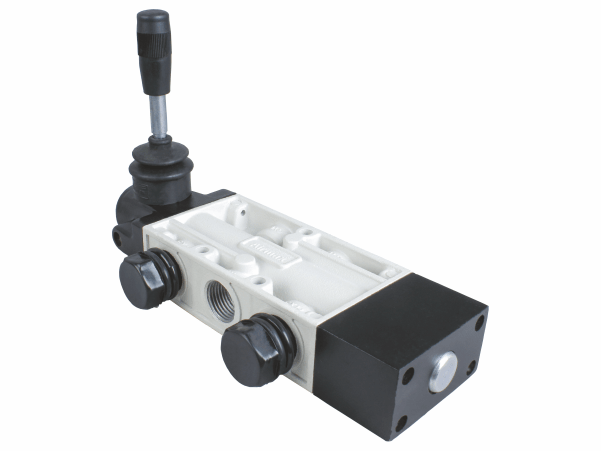

5/3 Way 3 Position Hand Lever Valve Spring Center

Product Details

Model	3ARMHLV-5 SC
Size	1/4", 1/2"
Body	Aluminium Press. Die Cast
Valve Type	PAN | PHN | PRN
Seals	Nitrile
Pressure	10 Kg/cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

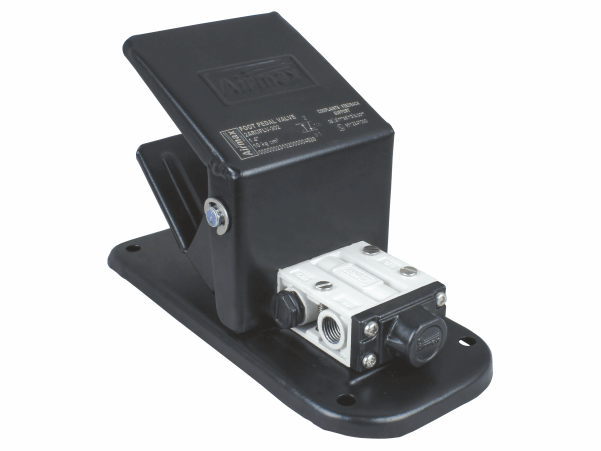

3/2 Way Foot Pedal Valve Spring Return

Product Details

Model	2ARMFLV-3
Size	1/4", 1/2"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	10 Kg/cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

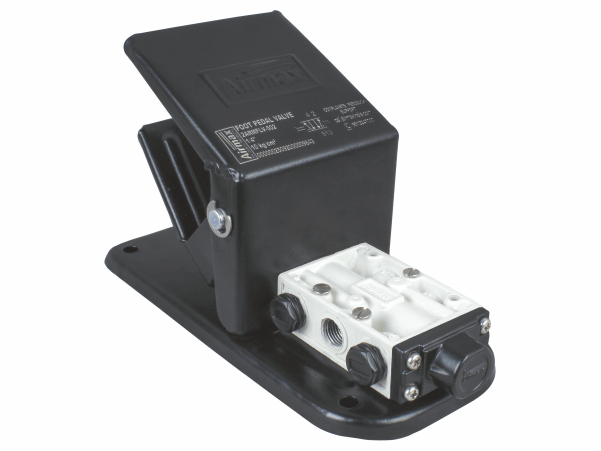

5/2 Way Foot Pedal Valve Spring Return

Product Details

Model	2ARMFLV-5
Size	1/4", 1/2"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	10 Kg/cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

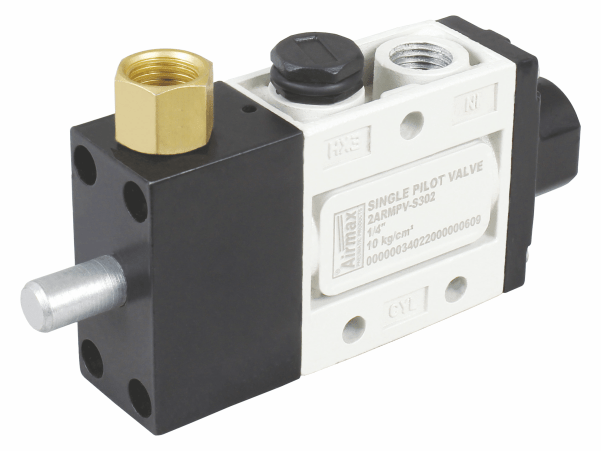

3/2 Way Single Pilot Valve



Product Details



Model	2ARMPV-S3
Size	1/4", 1/2"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	2.5 to 10 Kg/cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

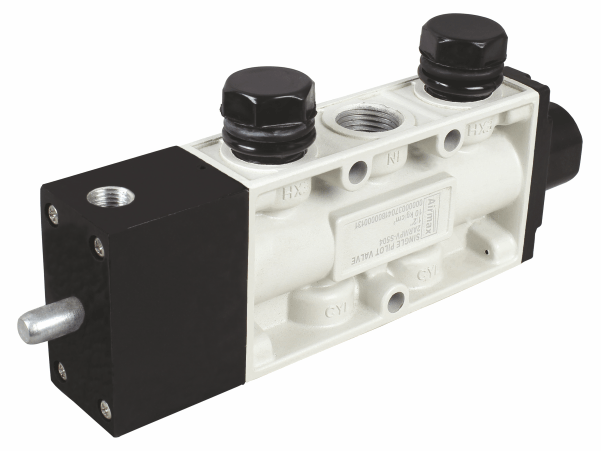

5/2 Way Single Pilot Valve

Product Details



Model	2ARMPV-S5
Size	1/4", 1/2"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	2.5 to 10 Kg/cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

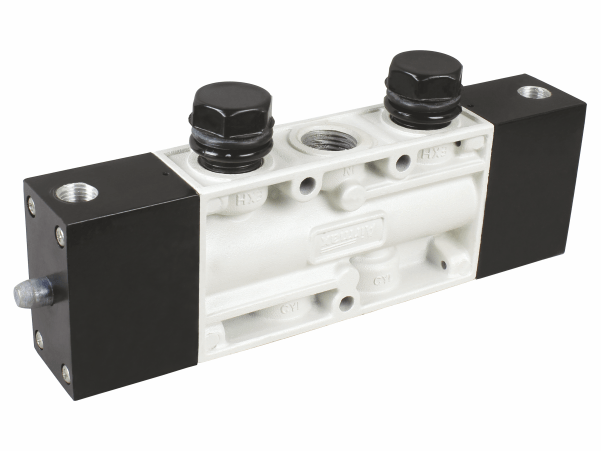

5/2 Way Double Pilot Valve

Product Details

Model	2ARMPV-D5
Size	1/4", 1/2"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	2.5 to 10 Kg/cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)



---

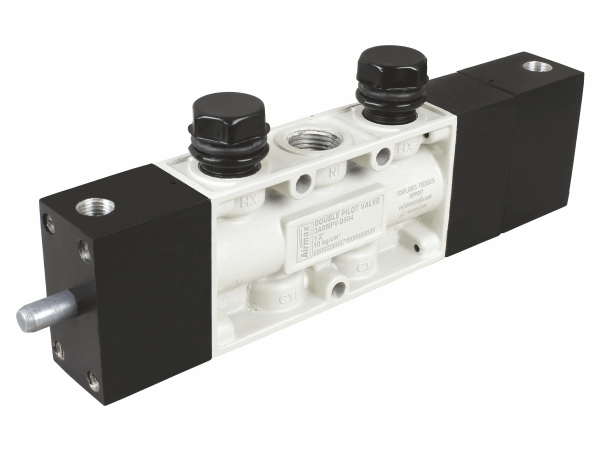

5/3 Way 3 Position Double Pilot Valve

Product Details

Model	3ARMPV-D5
Size	1/4", 1/2"
Body	Aluminium Press. Die Cast
Valve Type	PAN | PHN | PRN
Seals	Nitrile
Pressure	2.5 to 10 Kg/cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)

---

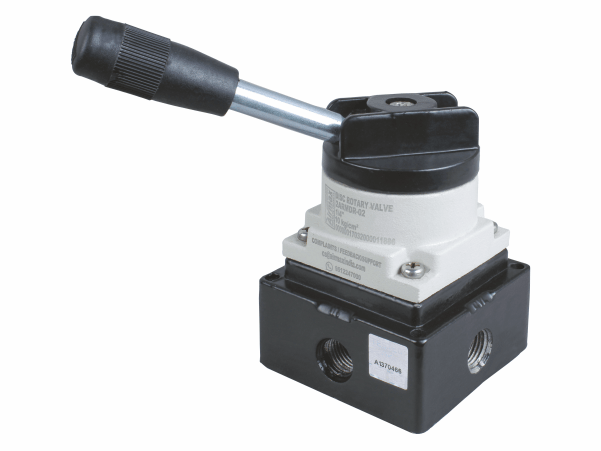

4 Way 3 Position Disc Rotary Valve

Product Details

Model	2ARMDR
Size	1/4", 1/2"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	10 Kg/cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air (Filtered & Lubricated)
