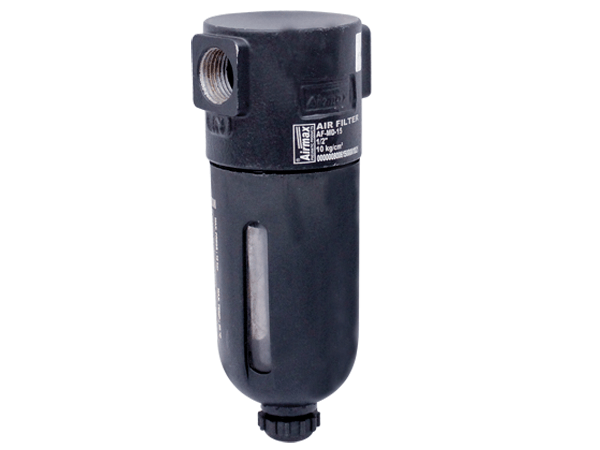

Air Filter



Product Details

Model	AF-MD
Size	1/4", 3/8", 1/2"
Body	Aluminium Pressure Die Cast
Seals	Hi-Nitrile
Bowl	Polycarbonate (Metal Bowl Available)
Element	25 Micron
Pressure	Up to 10 Kg/cm²
Temperature	Up to 50˚C
Media	Compressed Air

---

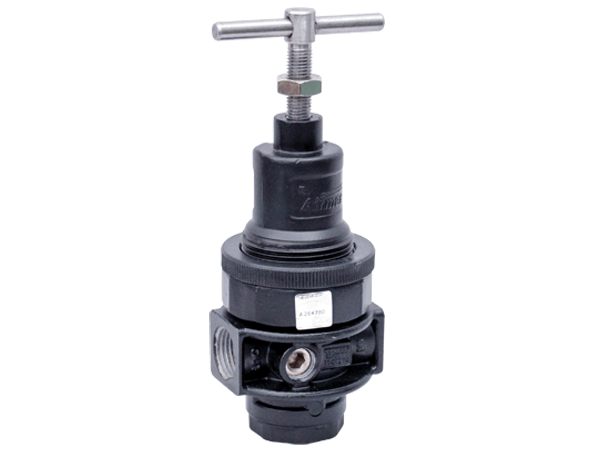

Air Regulator

Product Details

Model	AR-MD
Size	1/4", 3/8", 1/2"
Body	Aluminium Pressure Die Cast
Seals	Hi-Nitrile
Pressure	Up to 10 Kg/cm²
Temperature	Up to 50˚C
Media	Compressed Air
Piston	polyacetal

---

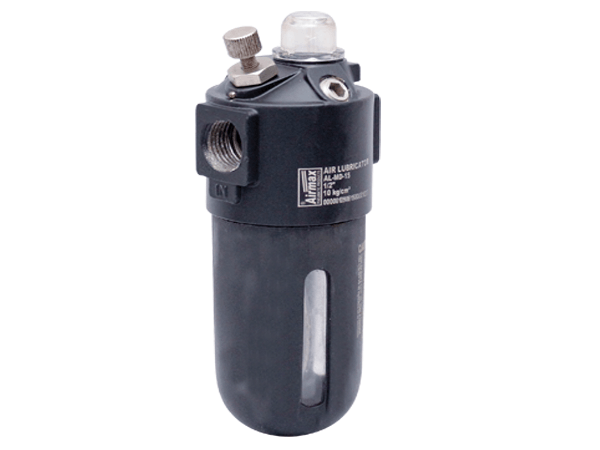

Air Lubricator



Product Details

Model	AL-MD
Size	1/4", 3/8", 1/2"
Body	Aluminium Pressure Die Cast
Seals	Hi-Nitrile
Bowl	Polycarbonate (Metal Bowl Available)
Element	25 Micron
Pressure	Up to 10 Kg/cm²
Temperature	Up to 50˚C
Media	Compressed Air



Note: For Lubrication use Oil Grade-ISO VG32 or Equivalent

---

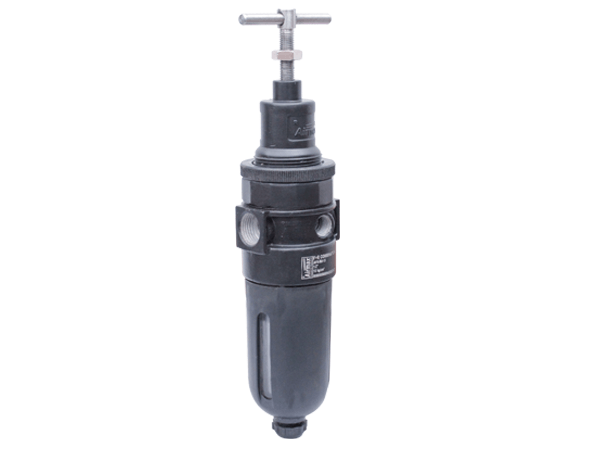

Air Combination

Product Details

Model	AFR-MD
Size	1/4", 3/8", 1/2"
Body	Aluminium Pressure Die Cast
Seals	Nitrile
Bowl	Polycarbonate (Metal Bowl Available)
Element	25 Micron
Pressure	Up to 10 Kg/cm²
Temperature	Up to 50˚C
Media	Compressed Air

---

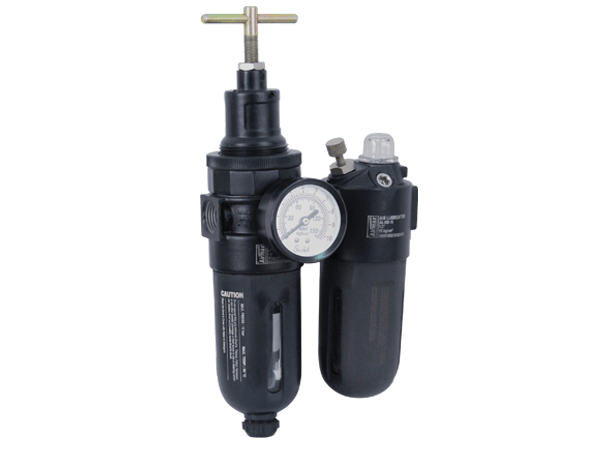

Air Fr+l Set

Product Details

Model	AFR+L-MD
Size	1/4", 3/8", 1/2"
Body	Aluminium Pressure Die Cast
Seals	Hi-Nitrile
Bowl	Polycarbonate (Metal Bowl Available)
Element	25 Micron
Pressure	Up to 10 kg/cm²
Temperature	Up to 50˚C
Media	Compressed Air

---

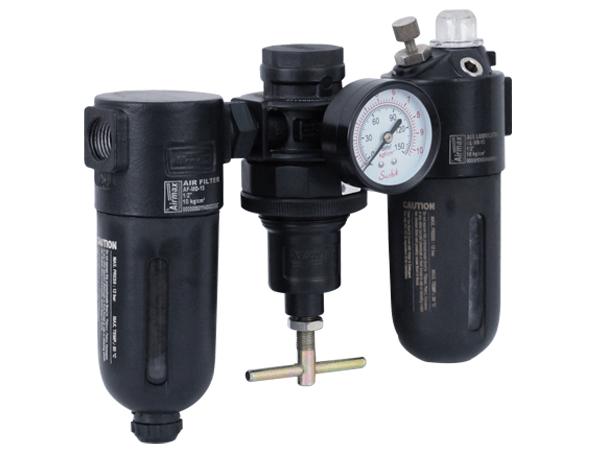

Air F+R+L Set

Product Details

Model	AFRL-MD
Size	1/4", 3/8", 1/2"
Body	Aluminium Pressure Die Cast
Seals	Hi-Nitrile
Bowl	Polycarbonate (Metal Bowl Available)
Element	25 Micron
Pressure	Up to 10 Kg/cm²
Temperature	Up to 50˚C
Media	Compressed Air
